Swing Cylinder (With Overload Protection)

  • Home
  • Swing Cylinder (With Overload Protection)

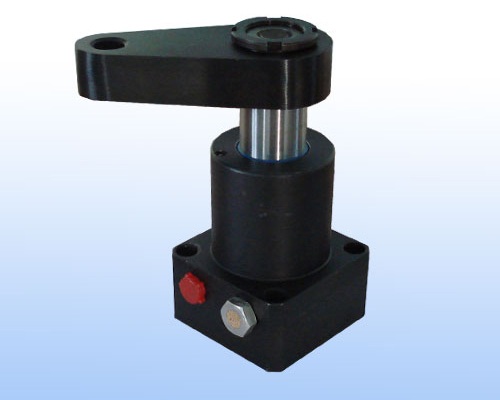

Top mounting :
Swing Cylinder With Overload Protection
Enquiry Now Whatsapp
Bottom mounting : :
Swing Cylinder With Overload Protection

Swing Cylinder
(With Overload Protection)

Description :

Swing cylinders are pull type cylinders. The piston rotates by 90° during the swing stroke, followed by straight clamping stroke due to the internal cam.

Application :

The clamping strap rotates by 90° while clamping and declamping. Due to the swing action, loading and unloading of the job is very easy. In the unclamped position, the workpiece area is free from the strap.

Versions :

Type of Cylinder

  • SW – Single Acting (Spring Return)
  • DSW – Double Acting

Mounting Style

  • TM – Top Mounting
  • BM – Bottom Mounting

Swing Direction (While Clamping & Looking from Rod Side)

  • CW – Clockwise
  • CCW – Counter Clockwise

Specifications :

  • Maximum oil pressure - 200 bar.
  • Minimum oil pressure - 30 bar.

Notes:

  • Single acting cylinders are suitable with Hydropneumatic Intensifier and should not be used with hydraulic power unit 'B'.
  • Double acting cylinders are suitable with hydraulic power unit 'B'.
  • Clamp the job in the straight clamping stroke only.
  • Do not exceed the standard strap length.
  • Adjust the oil flow rate in such a way so that the total clamping time will be between one to three seconds.
  • For height adjustment, either use a spacer at the mounting plate or adjust the clamping bolt on the strap. (fig. below)
  • For horizontal mounting of single acting cylinders, weight of the strap should assist the decamping swing stroke.
  • For single acting, spring return cylinder, a breather is provided. It should be protected from cutting liquids and coolants.
  • Use only meter in circuit.
  • Assemble the strap when cylinder is in clamp condition without putting work piece.
  • Angular tolerance ± 3°.
  • Strap has to be ordered separately.
  • For ordering the seal kit, add the prefix "S" to the part number.
  • For Non-standard cylinder requirements, Please contact sales@hypowerclamps.com.

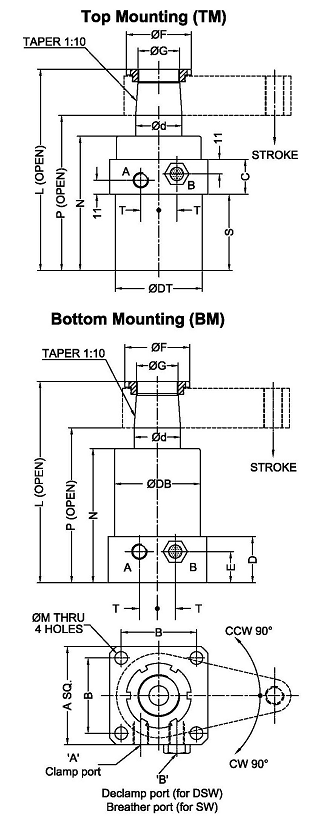

Dimension Details for Threaded Port Cylinder :

Threaded Port Cylinder Dimension
Application Example :
application example
Clamping Force (@ 150 bar) 4.5 kN 7 kN 10 kN 17 kN
Ø BORE 32 40 50 63
Ø d 25 32 40 50
A 65 75 85 105
B 50 60 65 80
C 30 32 32 32
D 34 40 40 40
E 22 27 27 27
Ø M 9 11 11 17
Ø DB 50 60 74 88
Ø DT 50 60 75 90
Ø F 32 40 56 68
Ø G M22x1.5 M28x1.5 M36x1.5 M48x2
L 130 153 184 184
N 83 97 116 116
P 105 125 144 144
S 42 52 67 67
T 14 16.5 15.5 18
Clamp / Declamp Port 1/8"BSP 1/4"BSP 1/4"BSP 1/4"BSP
TOTAL STROKE±1 20 24 24 24
SWING STROKE 10 10 10 10
STRAIGHT STROKE 10 14 14 14
OIL VOLUME CLAMP 6 cc 11 cc 18 cc 28 cc
OIL VOLUME DECLAMP 16 cc 30 cc 48 cc 75 cc
Weight 1.7 kg 3.2 kg 4 kg 6 kg

All dimensions are in mm. Overall dimension tolerance ± 0.5 mm.

Subject to change for improvement. (Revision - August 24).

Strap :

Strap Dimension
PART NO. R1 R2 C H V E R K WEIGHT
3608900 22 11.5 60 20 16 26.5 24.9 M 12 0.4 kg
3605200 27 15 75 23 18 35 31.8 M 16 1.3 kg
3601400 30 14 100 34 28 46 39.8 M 16 1.7 kg
3603100 40 18 120 34 28 56 49.8 M 20 2.5 kg

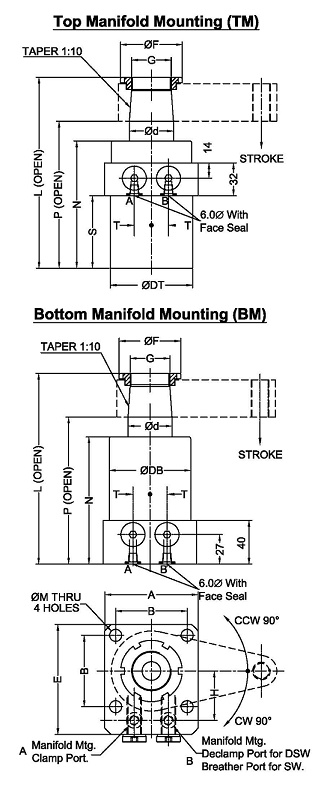

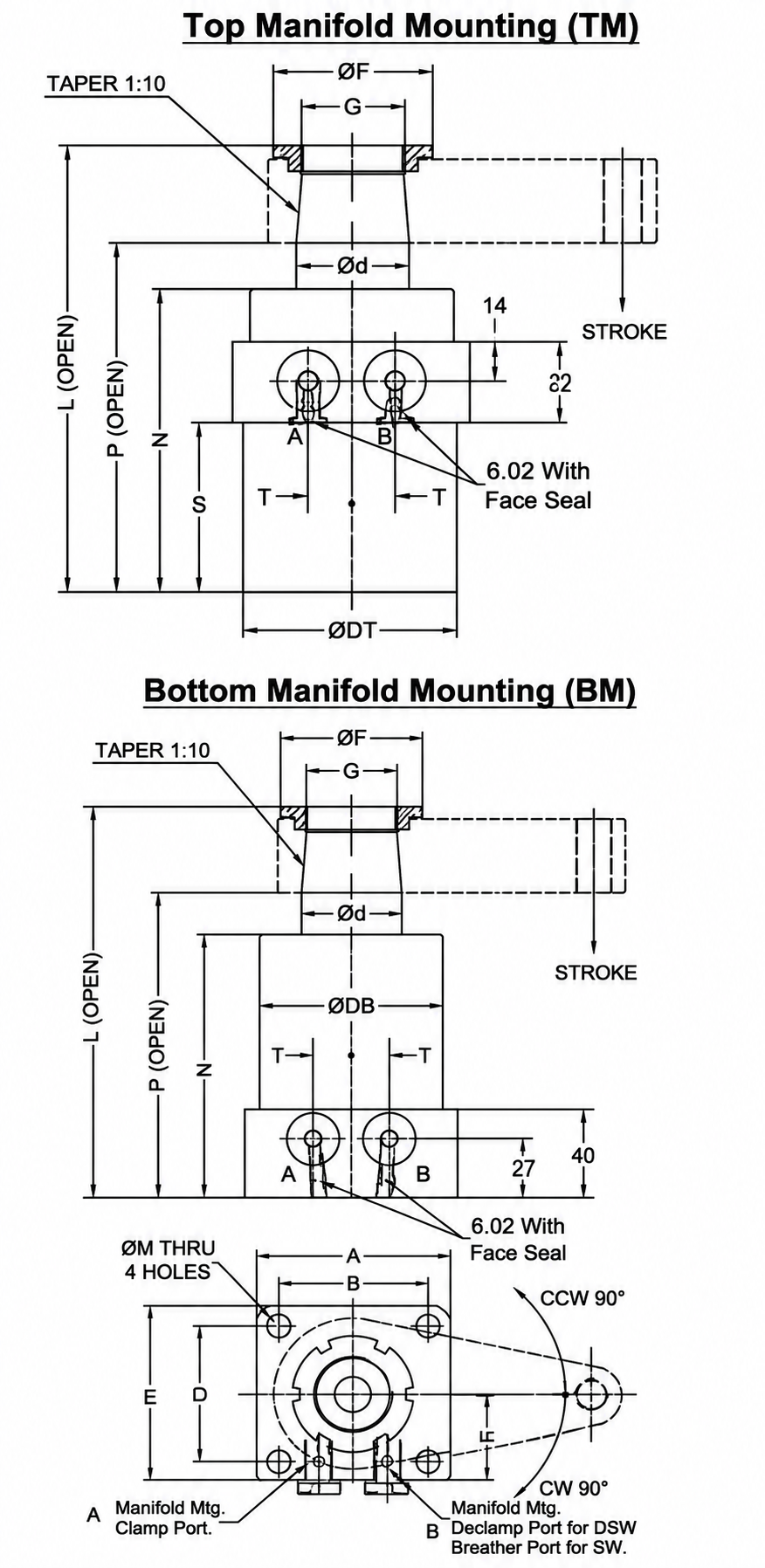

Dimension Details for Manifold Port Cylinder :

Manifold Port Cylinder Dimension
Application Example :
application example
Clamping Force (@ 150 bar) 7 kN 10 kN 17 kN
Ø BORE 40 50 63
Ø d 32 40 50
A 75 85 105
B 60 65 80
Ø M 11 11 17
Ø DB 60 74 88
Ø DT 60 75 90
Ø F 40 56 68
Ø G M28x1.5 M36x1.5 M46x2
L 153 184 184
N 97 116 116
P 125 144 144
S 52 67 67
T 16.5 15.5 18
E 89.00 101.50 118.00
H 37.50 45.00 51.50
TOTAL STROKE±1 24 24 24
SWING STROKE 10 10 10
STRAIGHT STROKE 14 14 14
OIL VOLUME CLAMP 11 cc 18 cc 28 cc
OIL VOLUME DECLAMP 30 cc 48 cc 75 cc
Weight 3.2 kg 4 kg 6 kg

All dimensions are in mm. Overall dimension tolerance ± 0.5 mm.

Subject to change for improvement. (Revision - August 24).

Strap :

Strap Dimension
PART NO. R1 R2 C H V E R K WEIGHT
3605200 27 15 75 23 18 35 31.8 M 16 1.3 kg
3601400 30 14 100 34 28 46 39.8 M 16 1.7 kg
3603100 40 18 120 34 28 56 49.8 M 20 2.5 kg

Application Example :

Swing Cylinder Application Example
