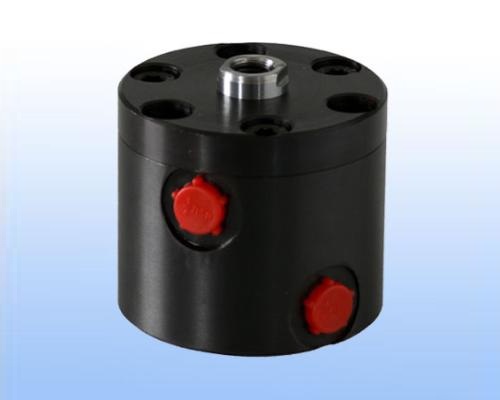

Compact Block Cylinder

Description :

Compact Block cylinders are widely used in work holding fixtures and other short stroke applications.

Advantages :

As compared to the tie rod construction cylinders, these cylinders are very compact, due to the integral construction.
These cylinders are versatile, i.e. they can be mounted in different ways.

Installation :

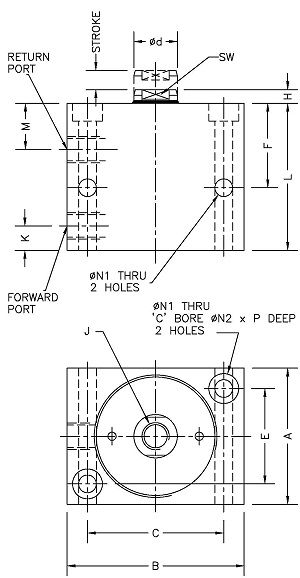

The cylinder can be mounted on the front side (rod side), rear side and side faces, as shown in the figures fig. 1, fig. 2, fig. 3.

Specifications :

• Maximum operating pressure - 200 bar.

Notes :

• For side mounting, a positive stopper should be provided to reduce the load on the clamping bolts (Refer Fig. 3).
• For ordering the seal kit, add the prefix "S" to the part number.
