Block Cylinder

Double acting, push type




Description :

Block cylinders are widely used in work holding fixtures and other short stroke applications.

Advantages :

As compared to the tie rod construction cylinders, these cylinders are very compact, due to the integral construction.
These cylinders are versatile, i.e. they can be mounted in different ways.

Installation :

The cylinder can be mounted on the front side (rod side), rear side and side faces, as shown in the figures fig. 1, fig. 2, fig. 3.

Specifications :

  • Maximum operating pressure - 200 bar.

Notes :

  • For side mounting, positive stopper should be provided to reduce the load on the clamping bolts. (fig. 3)
  • For ordering the seal kit, add the prefix "S" to the part number.
  • For Non-standard cylinder requirements, Please contact sales@hypowerclamps.com.

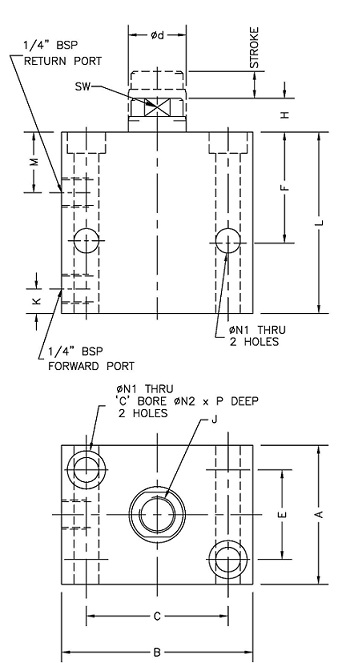

Dimensional details :



FORCE* (PUSH) 7.5 kN 19 kN 46.5 kN
FORCE* (PULL) 4.5 kN 11.5 kN 28 kN
øBORE 25 40 63
A 45 62 95
B 65 85 120
C 50 63 90
d 16 25 40
E 30 40 65
F 39.5 48.5 65.5
H 12 15 20
J M10x15DEEP M16x30DEEP M24x30DEEP
K 11 11.5 15
M 22 27 39.5
N1 9 11 17
SW 13 20 32
PART NO. 2110100 2110200 2120100 2120200 2130100 2130200
STROKE±1 20 50 20 50 20 50
L 68 98 81 111 105 135
OIL VOLUME
(PUSH)
10 cc 25 cc 25 cc 63 cc 63 cc 156 cc
OIL VOLUME
(PULL)
6 cc 15 cc 15 cc 38 cc 37 cc 93 cc
WEIGHT 1.5 kg 2.3 kg 2.5 kg 3.5 kg 9.6 kg 12.3 kg
* Force is specified at 150 bar.
All dimensions are in mm, Overall dimension tolerance ± 0.5 mm.
Subject to change for improvement. (Revision - August 13)

Application Example :
